Type
|

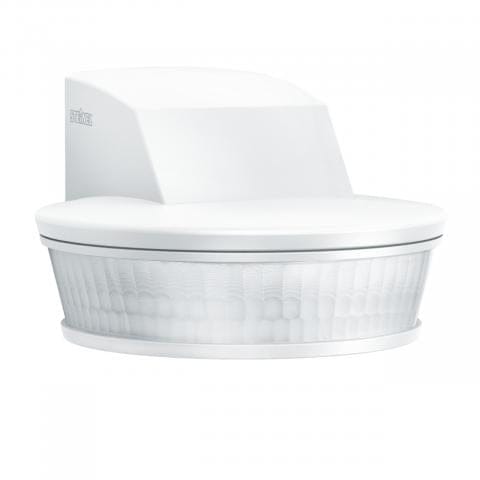

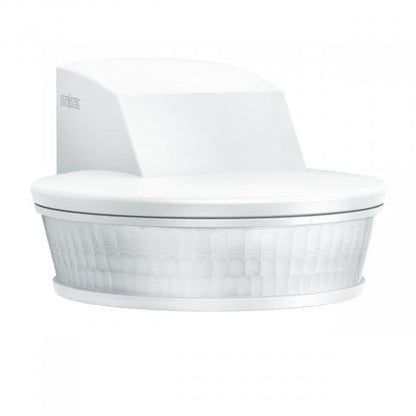

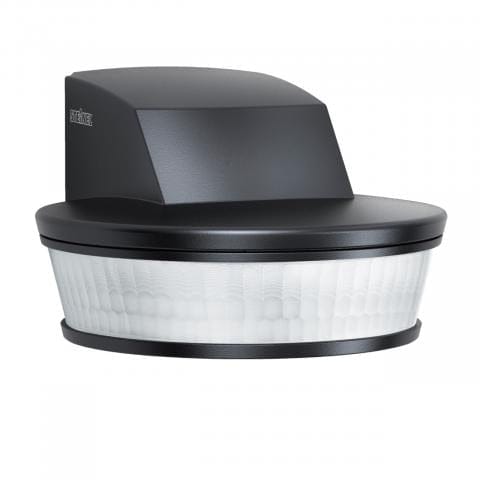

Motion detector |
Dimensions (H x W x D) |
114 x 74 x 128 mm |
Power supply
|
100 – 240 V, 50 / 60 Hz (2.5 mm² max.) |
Sensor type
|
Passive infrared |
Where to use
|
Indoors and outdoors |
Installation
|
Wall, corner |
Recommended installation height
|
2.00 – 5.00 m |
Output (resistive load, e.g. ordinary lamp)
|
2000 W max. for 230 V |
|
1200 W max. for 120 V |
Output (uncorrected, inductive, |
|
cos φ = 0.5, e.g. fluorescent lamps) |
1000 VA max. for 230 V |
|
500 VA max. for 120 V |
Inrush current |
800 A / 200 μs max. |
Electronic ballast |
30 x (1 x 18 W), 25 x (2 x 18 W) |
|
25 x (1 x 36 W), 15 x (2 x 36 W) |
|
20 x (1 x 58 W), 10 x (2 x 58 W) |
Angle of coverage |
300° with 180° angle of aperture |
Capability of masking out individual segments |
Yes |
Sneak-by guard / coverage directly below the sensor |
Yes |
Reach |

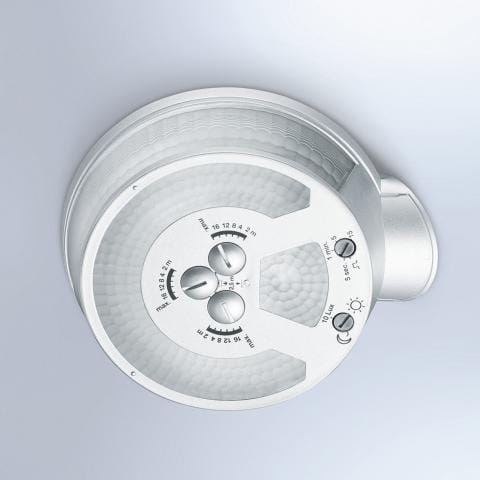

Can be adjusted in 3 directions by control dial |
|
(2 – 20 m max. tangentially, temperature-stabilised) |
Sensor system |
4 sensors, 6 detection levels for long-distance detection |
|
and 5 for sneak-by protection, 1360 switching zones |
Response brightness |
2 – 2000 lx |
Time setting |
5 sec. – 15 min., pulse mode (approx. 2 sec.) |
Manual override |
selectable, 4 h |
Light permanently OFF |
selectable |
IP rating |
IP54 |
Protection class |
II |
Temperature range |
- 20 to +50°C |
