General |
|

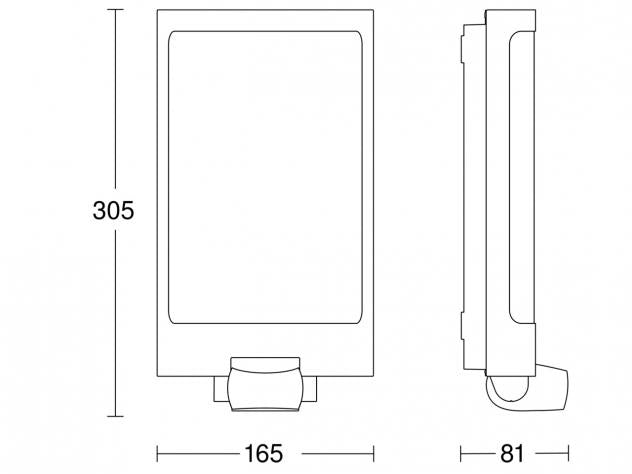

Dimensions (L x W x H) |
81 x 165 x 305 mm |
With lamp |
Yes, STEINEL LED system |
Manufacturer's Warranty |
3 years |
Settings via |
Potentiometers |
With remote control |
No |
Version |
Stainless steel |
PU1, EAN |
4007841010461 |
Application, place |
Outdoors |
Application, room |
Outdoors, front door, all round the building, terrace / balcony, courtyard & driveway |
Colour |
Anthracite |
Fixation/ mounting |
|
Installation site |
Wall |
Housing |
|

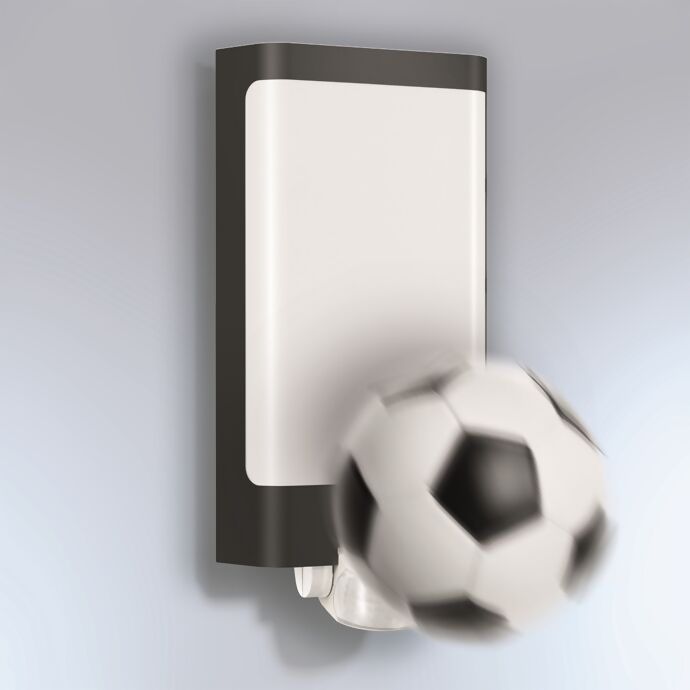

Impact resistance |
IK07 |
IP-rating |
IP44 |
Protection class |
II |
Ambient temperature |
-20 – 50 °C |
Housing material |
Stainless steel |
Cover material |
Plastic, opal |
Electrical equipment |
|
Mains power supply |
220 – 240 V / 50 – 60 Hz |
Output |
9.3 W |
Average rated life expectancy of power supply unit at 25°C |
> 60000 h |
Sensor technology |
|
Mounting height max. |
3.00 m |
Slave mode selectable |
No |
Sneak-by guard |
Yes |
Capability of masking out individual segments |
Yes |
Electronic scalability |
No |
Mechanical scalability |
No |
Reach, radial |
r = 3 m (14 m²) |
Reach, tangential |
r = 10 m (157 m²) |
Cover material |
Sticker |
Optimum mounting height |
2 m |
Detection angle |
180 ° |
Luminaire |
|
Photo-cell controller |
Yes |
Luminous flux total product |
946 lm |
Measured luminous flux (360°) |
946 lm |
Total product efficiency |
101 lm/W |
Colour temperature |
3000 K |
Colour variation LED |
SDCM3 |
Lamp |
LED cannot be replaced |
LED life expectancy (max. °C) |
60000 Std |
Service life LED L70B50 (25°) |
> 60000 h |
Base |
Without |
LED cooling system |
Passive Thermo Control |
Soft light start |
No |
Colour Rendering Index CRI |
= 82 |
General information |
|
Article number |
010461 |
European Article Number (EAN) |
4007841010461 |
Functions |
|
Twilight setting |
2 – 2000 lx |
Time setting |
8 s – 35 Min. |
Basic light level function |
No |
Connection |
|
Interconnection |
No |
