Dimensions (Ø x H) |
280 x 110 mm |
With lamp |
Yes, STEINEL LED system |
With motion detector |
Yes |
Manufacturer's Warranty |
5 years |
Version |
Warm white |
PU1, EAN |
4007841056063 |
Colour |
White |
Fuse protection B10 |
54 |
Fuse protection B16 |
87 |
Fuse protection C10 |
90 |
Fuse protection C16 |
145 |
Fixation/mounting |
|
Installation site |
Wall, ceiling |
Installation |
Wall, Ceiling, Surface wiring |
Housing |
|
Impact resistance |
IK03 |
IP-rating |
IP54 |
Protection class |
II |
Ambient temperature |
-10 – 40 °C |
Housing material |
Plastic |
Cover material |
Plastic, opal |
IP-rating, ceiling |
IP54 |
Electrical equipment |
|
Mains power supply |
220 – 240 V / 50 – 60 Hz |
Switching output 1, low-voltage halogen lamps |
800 VA |
LED lamps > 8 W |
250 W |
Capacitive load in μF |
88 µF |
Output |
9.4 W |
Starting current, maximum |
13 A |
Sensor technology |
|
Mounting height max. |
4.00 m |
Electronic scalability |
Yes |
Mechanical scalability |
No |

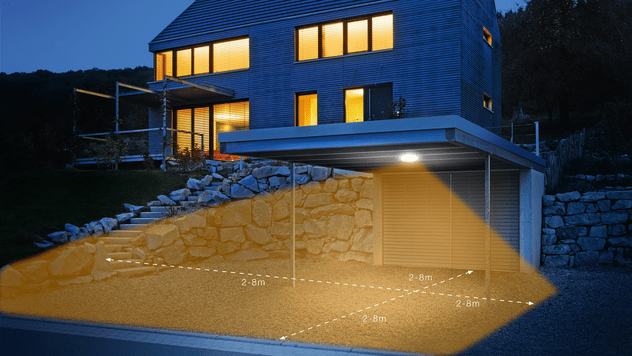

Reach, radial |
Ø 8 m (50 m²) |
Reach, tangential |
Ø 8 m (50 m²) |
Detection angle |
360 ° |
Luminaire |
|
Luminous flux total product |
968 lm |
Total product efficiency |
103 lm/W |
Colour temperature |
3000 K |
Lamp |
LED cannot be replaced |
Base |
Without |
LED cooling system |
Passive Thermo Control |
Soft light start |
Yes |
Continuous light |
Selectable, 4h |
Lifetime LED according to IEC-62717 (L70) |
100,000 h |
Lifetime LED according to IEC-62717 (L80) |
73,000 h |
Lifetime LED according to IES TM-21 (L70) |
> 60,000 h |
Lifetime LED according to IES TM-21 (L80) |
> 60,000 h |
Colour Rendering Index CRI |
= 82 |
Photobiological safety in accordance with EN 62471 |
RG1 |
General information |
|
Article number |
056063 |
European Article Number (EAN) |
4007841056063 |
Basic light level function in per cent |
10 % |
Functions |
|
Twilight setting |
2 – 2000 lx |
Time setting |
5 s – 15 Min. |
Basic light level function |
Yes |
Basic light level function time |
10/30 min, all night |
Connection |
|
Interconnection |
Yes |
Interconnection via |
Cable |
